Benelli Macis 150 (2016)

Technical Specifications
2016 Benelli Macis 150
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Liquid cooled, single cylinder, four stroke, Single Overhead Cams
57.5 x 57.8 mm (2.3 x 2.3 inches)
151cc
2 valves per cylinder
10.4:1
12.40 HP (9.1 kW) @ 7500 rpm
12.50 Nm (1.3 kgf-m or 9.2 ft.lbs) @ 6000 rpm
Carburettor. 26 mm PD26J G17
Automatic
Belt
Automatic centrifugal dry clutch
CDI
Electric starter

With catalytic converter
Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel trestle with a double cradle in steel tube

2095 mm (82.5 inches)
720 mm (28.3 inches)
1115 mm (43.9 inches)
1380 mm (54.3 inches)
800 mm (31.5 inches)

130 kg
7.4 litres
Black, white
Telescopic fork
Double hydrualic shock
100/80-R16
120/80-R16
Single 240 mm floating disc with two-piston calipers
Single 240 mm floating disc with two-piston calipers

Source: https://www.autoevolution.com/moto/benelli-macis-150-2015.html#aeng_benelli-macis-150-2015-151

Benelli Macis 125 (2016)

Technical Specifications
2016 Benelli Macis 125
Engine
Engine type Liquid cooled, single cylinder, four stroke, Single Overhead Cams
Bore x Stroke 52.4 x 57.8 mm (2.1 x 2.3 inches)
Displacement 124cc
Valves 2 valves per cylinder
Compression ratio 11.1:1
Max Power 12.10 HP (8.8 kW) @ 8500 rpm
Max Torque 10.70 Nm (1.1 kgf-m or 7.9 ft.lbs) @ 6500 rpm
Fuel system Carburettor. PD26J
Transmission Automatic
Final drive Belt
Clutch Centrifugal clutch
Ignition type Analogue CDI
Starting system Electric starter
Lubrication Wet crankcase
Exhaust system With catalytic converter
Spark plug
Alternator
Gear ratios
Dimensions
Frame type Steel trestle with a double cradle in steel tube
Rake/trail
Overall length 2095 mm (82.5 inches)
Overall width 720 mm (28.3 inches)
Overall height 1115 mm (43.9 inches)
Wheelbase 1380 mm (54.3 inches)
Seat height 800 mm (31.5 inches)
Ground clearance
Weight 130 kg
Fuel capacity 7.4 litres
Color White, black
Suspension (front) Hydraulic telescopic fork ø33 mm
Suspension (rear) Floating engine with double hydraulic rear dumper
Tyre (front) 100/80-R16
Tyre (rear) 120/80-R16
Brake (front) Single 240 mm floating disc with two-piston calipers
Brake (rear) Single 240 mm floating disc with two-piston calipers

Benelli Caffenero 125 (2016)

Technical Specifications
2016 Benelli Caffenero 125
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Liquid cooled, single cylinder, four stroke, Single Overhead Cams
52.4 x 57.8 mm (2.1 x 2.3 inches)
125cc
2 valves per cylinder
11.1:1
12.10 HP (8.8 kW) @ 8250 rpm
12.50 Nm (1.3 kgf-m or 9.2 ft.lbs) @ 6000 rpm
Carburettor. PD26J 125
Automatic
Belt
Dry, centrifugal clutch
Analogue CDI
Electric starter
Wet crankcase
With catalytic converter
Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Split single cradle frame in high tensile strength steel tube

2070 mm (81.5 inches)
715 mm (28.1 inches)
1260 mm (49.6 inches)
1360 mm (53.5 inches)
800 mm (31.5 inches)

119 kg
7.4 litres
White, grey, black, cream
Hydraulic telescopic fork
Twin shock, Swingarm
100/80-R16
110/80-R16
Single 240 mm floating disc with two-piston calipers
Single 240 mm floating disc with two-piston calipers

Image: https://www.autoevolution.com/moto/benelli-caffenero-125-2015.html#aeng_benelli-caffenero-125-2015-124

Benelli Caffenero 150 (2016)

Technical Specifications
2016 Benelli Caffenero 150
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Liquid cooled, single cylinder, four stroke, Single Overhead Cams
57.6 x 57.8 mm (2.3 x 2.3 inches)
151cc
2 valves per cylinder
11.1:1
13.05 HP (9.5 kW) @ 7500 rpm
13.30 Nm (1.4 kgf-m or 9.8 ft.lbs) @ 6000 rpm
Carburettor. PD26J 125
Automatic
Belt
Dry, centrifugal clutch
Analogue CDI
Electric starter

With catalytic converter
Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Split single cradle frame in high tensile strength steel tube

2,070 mm (81.5 inches)
715 mm (28.1 inches)
1,260 mm (49.6 inches)
1,360 mm (53.5 inches)
800 mm (31.5 inches)

119 kg
7.4 litres
Black, white, grey, cream
Telescopic fork
Floating engine with double hydraulic rear dumper
100/80-R16
110/80-R16
Single 240 mm floating disc with two-piston calipers
Single 240 mm floating disc with two-piston calipers

Image: https://www.autoevolution.com/moto/benelli-caffenero-150-2015.html

Indian Chief Classic (2016)

Technical Specifications
2016 Indian Chief Classic
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Air cooled, v-twocylinder, four stroke
101.6 x 113.0 mm (4.0 x 4.4 inches)
1811cc
4 valves per cylinder
9.5:1

139.00 Nm (14.2 kgf-m or 102.5 ft.lbs) @ 2600 rpm
Injection. Closed Loop Sequential Port injection
6-speed
Belt


Electric starter

Split dual exhaust with cross-over
Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Cast Aluminum Frame with Integrated Air-Box
29.0°
2630 mm (103.5 inches)
1000 mm (39.4 inches)
1176 mm (46.3 inches)
1730 mm (68.1 inches)
660 mm (26.0 inches)
140 mm (5.5 inches)
341 kg

Pearl White
Telescopic fork
Single-shock
130/90-B16
150/80-B16
Dual 300 mm floating disc with four-piston calipers ABS
Single 300 mm floating disc with two-piston calipers ABS

Image: https://www.autoevolution.com/news/2016-indian-chief-classic-and-chief-vintage-introduce-new-colors-photo-gallery-99570.html

Ice Bear Zodiac 300 Trike (2016)

Technical Specifications
2016 Ice Bear Zodiac 300 Trike
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Liquid cooled, single cylinder, four stroke
72.9 x 66.8 mm (2.9 x 2.6 inches)
276cc
4 valves per cylinder
10.0:1
17.70 HP (12.9 kW) @ 7500 rpm
22.00 Nm (2.2 kgf-m or 16.2 ft.lbs) @ 5500 rpm
Carburettor
Automatic
Chain

CDI
Electric starter


Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel

2578 mm (101.5 inches)
1298 mm (51.1 inches)
1328 mm (52.3 inches)
1969 mm (77.5 inches)
818 mm (32.2 inches)
89 mm (3.5 inches)
259.9 kg
12.11 litres
Black, white, blue
Dual Telescopic Forks
Dual Shock
130/60-R13
190/50-R12
Single disc with two-piston calipers
Single disc with two-piston calipers

Image: http://www.keywordhut.com/aWNlIGJlYXIgdHJpa2UgMzAwY2M/

Ice Bear Viking 150 Trike (2016)

Technical Specifications
2016 Ice Bear Viking 150 Trike
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Air cooled, single cylinder, four stroke
57.4 x 57.9 mm (2.3 x 2.3 inches)
149.6cc
4 valves per cylinder
10.3:1
8.18 HP (6.0 kW) @ 7500 rpm
9.30 Nm (0.9 kgf-m or 6.9 ft.lbs) @ 6000 rpm
Carburettor
Automatic
Chain

CDI
Electric & kick starter


Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel

2050 mm (80.7 inches)
1019 mm (40.1 inches)
1019 mm (40.1 inches)
1549 mm (61.0 inches)
749 mm (29.5 inches)
130 mm (5.1 inches)
161 kg
6.81 litres
Red, black, blue
Telescopic fork
Dual Shock
120/70-R12
205/50-R10
Single disc with two-piston calipers
Single disc with two-piston calipers

Image: https://www.bobcatsmotorsports.com/Ice_Bear_VIKING_150cc_Motor_Trike_PST150_8_p/trike%20pst150-8.htm

Ice Bear Tornado 300 Trike (2016)

Technical Specifications
2016 Ice Bear Tornado 300 Trike
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Air cooled, single cylinder, four stroke
57.4 x 57.9 mm (2.3 x 2.3 inches)

4 valves per cylinder
10.3:1
8.18 HP (6.0 kW) @ 7500 rpm
9.30 Nm (0.9 kgf-m or 6.9 ft.lbs) @ 6000 rpm
Carburettor
Automatic
Chain

CDI
Electric & kick starter


Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel

2530 mm (99.6 inches)
1069 mm (42.1 inches)
1100 mm (43.3 inches)
1948 mm (76.7 inches)
699 mm (27.5 inches)
89 mm (3.5 inches)
240 kg
12.87 litres
Black, white, red, blue, silver
Telescopic Forks
Dual Shock
130/60-R13
205/50-R10
Single disc with two-piston calipers
Single disc with two-piston calipers

Image: https://www.bobcatsmotorsports.com/Ice_Bear_300cc_Motor_Trike_TORNADO_300_p/tornado-300.htm

Ice Bear Road Warrrior 250 Trike (2016)

Technical Specifications
2016 Ice Bear Road Warrrior 250 Trike
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Air cooled, single cylinder, four stroke
49.0 x 66.0 mm (1.9 x 2.6 inches)
248cc
4 valves per cylinder
10.0:1
17.43 HP (12.7 kW) @ 8000 rpm
19.00 Nm (1.9 kgf-m or 14.0 ft.lbs) @ 6000 rpm
Carburettor
5-speed
Chain

CDI
Electric starter


Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel

3010 mm (118.5 inches)
1019 mm (40.1 inches)
1120 mm (44.1 inches)
1085 mm (42.7 inches)
688 mm (27.1 inches)
79 mm (3.1 inches)
249.9 kg (551.0 pounds)
8.33 litres (2.20 gallons)
Gray
Dual telescopic fork
Dual Shock
3.00-R18
235/30-R12
Single disc with two-piston calipers
Single disc with two-piston calipers

Image: http://www.bobcatsmotorsports.com/Ice_Bear_250cc_Air_Cooled_Motor_Trike_ROAD_WARRIOR_p/road%20warrior-250.htm

Ice Bear Q6 50 Trike (2016)

Technical Specifications
2016 Ice Bear Q6 50 Trike
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Air cooled, single cylinder, four stroke
38.4 x 41.4 mm (1.5 x 1.6 inches)
49.5cc
4 valves per cylinder
10.5:1
1.88 HP (1.4 kW) @ 5500 rpm
2.00 Nm (0.2 kgf-m or 1.5 ft.lbs) @ 4500 rpm
Carburettor

Chain

CDI
Electric & kick starter


Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel

2101 mm (82.7 inches)
1019 mm (40.1 inches)
1090 mm (42.9 inches)
1549 mm (61.0 inches)
780 mm (30.7 inches)
130 mm (5.1 inches)
140 kg
4.54 litres
Black, white, blue, red, silver, yellow, green
Telescopic fork
Dual Shock
90/90-R14
205/50-R10
Single disc with two-piston calipers
Single disc with two-piston calipers

Image: https://www.powerrideoutlet.com/ice-bear-49cc-trike-scooter-q6.html

Ice Bear PST50-19N Trike (2016)

Technical Specifications
2016 Ice Bear PST50-19N Trike
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Air cooled, single cylinder, four stroke
38.4 x 41.4 mm (1.5 x 1.6 inches)
49.5cc
4 valves per cylinder
10.5:1
1.88 HP (1.4 kW) @ 5500 rpm
2.00 Nm (0.2 kgf-m or 1.5 ft.lbs) @ 4500 rpm
Carburettor

Chain

CDI
Electric & kick starter


Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel

2,278 mm (89.7 inches)
968 mm (38.1 inches)
879 mm (34.6 inches)
1,750 mm (68.9 inches)
559 mm (22.0 inches)

139.7 kg
6.81 litres
Black, white, blue, red, silver, yellow, green
Telescopic fork
Dual Shock
120/70-R12
270/30-R14
Single disc with two-piston calipers
Single disc with two-piston calipers

Image: http://www.megamotormadness.com/product/tri028-50cc-trike

Ice Bear PSS250-P-F Street (2016)

Technical Specifications
2016 Ice Bear PSS250-P-F Street
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Liquid cooled, single cylinder, four stroke
97.0 x 67.5 mm
249cc
4 valves per cylinder

113 hp (84.3 kW) @ 9250 rpm
96 Nm (70.8 ft. lbs) @ 7250 rpm
Carburettor
5-speed
Chain

CDI
Electric starter


Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)



2080 mm (81.9 inches)
790 mm (31.1 inches)
1150 mm (45.3 inches)



152 kg

Red, blue, black, white
Telescopic fork
Mono Shock
110/60-R17
140/70-R17
Dual 288 mm disc with two-piston calipers
Single 240 mm disc with two-piston calipers

Image: http://www.motorscootershops.com/harwin-scooters-dealer

Ice Bear Pluto 50 Trike (2016)

Technical Specifications
2016 Ice Bear Pluto 50 Trike
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Air cooled, single cylinder, four stroke
38.4 x 41.4 mm (1.5 x 1.6 inches)
49.5cc
2 valves per cylinder
10.5:1
1.88 HP (1.4 kW) @ 5500 rpm
2.00 Nm (0.2 kgf-m or 1.5 ft.lbs) @ 4500 rpm
Carburettor

Chain

CDI
Electric & Kick starter
Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel

2068 mm (81.4 inches)
1019 mm (40.1 inches)
1049 mm (41.3 inches)
1509 mm (59.4 inches)
729 mm (28.7 inches)
130 mm (5.1 inches)
129.7 kg
6.06 litres
Black, red, white, green
Telescopic Fork
Dual Shock
120/70-R12
205/50-R10
Single disc with two-piston calipers
Single disc with two-piston calipers

Image: http://www.megamotormadness.com/product/tri022-50cc-trike

Ice Bear PAH110-2 (2016)

Technical Specifications
2016 Ice Bear PAH110-2
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Air cooled, single cylinder, four stroke
52.3 x 49.5 mm (2.1 x 2.0 inches)
107cc
2 valves per cylinder
8.0:1

6.50 Nm (0.7 kgf-m or 4.8 ft.lbs) @ 6000 rpm
Carburettor

Chain

CDI
Electric starter
Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel

1346 mm (53.0 inches)
762 mm (30.0 inches)
864 mm (34.0 inches)
787 mm (31.0 inches)
559 mm (22.0 inches)

72.0 kg
9.46 litres

Double A-Arm
Single Swing Arm
145/70-R6
145/70-R6
Expanding brake (drum brake)
Expanding brake (drum brake)

Image: http://www.brookfieldautosales.com/2016_Ice%20Bear_PAH1102_8700558.veh

Ice Bear Monkey Blade (2016)

Technical Specifications
2016 Ice Bear Monkey Blade
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Air cooled, single cylinder, four stroke
52.3 x 49.5 mm (2.1 x 2.0 inches)
107cc
2 valves per cylinder
9.2:1
8.05 HP (5.9 kW) @ 8500 rpm
7.00 Nm (0.7 kgf-m or 5.2 ft.lbs) @ 6500 rpm
Carburettor

Chain

CDI
Electric & Kick starter
Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel

1,308 mm (51.5 inches)
579 mm (22.8 inches)
859 mm (33.8 inches)
909 mm (35.8 inches)
678 mm (26.7 inches)
180 mm (7.1 inches)
60.8 kg
9.46 litres

Telescopic Fork
Dual Shock
3.50-8
3.50-8
Expanding brake (drum brake)
Expanding brake (drum brake)

Image: http://www.abcbmw.com/ice-bear-blade-pbz110-1-inventory.htm?id=635788&in-stock=1

Ice Bear Mojo 50 Trike (2016)

Technical Specifications
2016 Ice Bear Mojo 50 Trike
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Air cooled, single cylinder, four stroke
38.4 x 41.4 mm (1.5 x 1.6 inches)
49.5cc
2 valves per cylinder
10.5:1
1.88 HP (1.4 kW) @ 5500 rpm
2.00 Nm (0.2 kgf-m or 1.5 ft.lbs) @ 4500 rpm
Carburettor

Chain

CDI
Electric & Kick starter
Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel

1948 mm (76.7 inches)
1008 mm (39.7 inches)
1118 mm (44.0 inches)
1488 mm (58.6 inches)
909 mm (35.8 inches)
100 mm (3.9 inches)
119.8 kg
4.54 litres (1.20 gallons)
Black, black/silver, blue/silver, green/black, blue/black, red/silver
Telescopic Fork
Dual Shock
120/70-R12
205/50-R10
Single disc with two-piston calipers
Single disc with two-piston calipers

Image: http://www.familygokarts.com/shop/trikes-three-wheeled-scooters-44/ice-bear-mojo-50s8-trike-scooter/ib-trike-50s8-red

Ice Bear Mojo 150 Trike (2016)

Technical Specifications
2016 Ice Bear Mojo 150 Trike
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Air cooled, single cylinder, four stroke
57.4 x 57.9 mm (2.3 x 2.3 inches)
149.6cc
4 valves per cylinder
10.3:1
8.18 HP (6.0 kW) @ 7500 rpm
9.30 Nm (0.9 kgf-m or 6.9 ft.lbs) @ 6000 rpm
Carburettor
Automatic
Chain

CDI
Electric & kick starter


Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel

1948 mm (76.7 inches)
1008 mm (39.7 inches)
1118 mm (44.0 inches)
1488 mm (58.6 inches)
909 mm (35.8 inches)
120 mm (4.7 inches)
145.2 kg
4.54 litres
Black/silver, red/silver, blue/silver
Telescopic fork
Dual Shock
130/60-R12
205/50-R10
Single disc with two-piston calipers
Single disc with two-piston calipers

Image: https://www.powerrideoutlet.com/ice-bear-50cc-trike-mojo-trike-50cc-scooter-trike.html

Ice Bear Mini Cruzzer 50 Trike (2016)

Technical Specifications
2016 Ice Bear Mini Cruzzer 50 Trike
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Air cooled, single cylinder, four stroke
38.4 x 41.4 mm (1.5 x 1.6 inches)
49.5cc
2 valves per cylinder
10.5:1
1.88 HP (1.4 kW) @ 5500 rpm
2.00 Nm (0.2 kgf-m or 1.5 ft.lbs) @ 4500 rpm
Carburettor

Chain

CDI
Electric & Kick starter
Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel







110.2 kg

Black, silver, blue, red, white, pink
Telescopic Forks
Dual Shock
120/70-R12
205/50-R10
Single disc with two-piston calipers
Single disc with two-piston calipers

Image: https://www.madnessmotor.com/products/icebear-mini-cruzzer-pst50-9-50cc-trike

Ice Bear Magnum 300 Trike (2016)

Technical Specifications
2016 Ice Bear Magnum 300 Trike
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Liquid cooled, single cylinder, four stroke
72.9 x 66.8 mm (2.9 x 2.6 inches)
276cc
4 valves per cylinder
10.0:1
17.70 HP (12.9 kW) @ 7500 rpm
22.00 Nm (2.2 kgf-m or 16.2 ft.lbs) @ 5500 rpm
Carburettor
Automatic
Chain

CDI
Electric starter


Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel

2350 mm (92.5 inches)
1049 mm (41.3 inches)
1140 mm (44.9 inches)
1900 mm (74.8 inches)
919 mm (36.2 inches)
150 mm (5.9 inches)
200 kg
12.11 litres
Silver, black
Dual Telescopic Forks
Dual Shock
130/60-R13
190/50-R12
Single disc with two-piston calipers
Single disc with two-piston calipers

Image: https://www.bobcatsmotorsports.com/Ice_Bear_300cc_Motor_Trike_TORNADO_300_p/tornado-300.htm

Ice Bear Maddog 50 (2016)

Technical Specifications
2016 Ice Bear Maddog 50
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Air cooled, single cylinder, four stroke
38.4 x 41.4 mm (1.5 x 1.6 inches)
49.5cc
4 valves per cylinder
10.5:1
1.88 HP (1.4 kW) @ 5500 rpm
2.00 Nm (0.2 kgf-m or 1.5 ft.lbs) @ 4500 rpm
Carburettor

Chain

CDI
Kick starter
Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel




1,598 mm (62.9 inches)
599 mm (23.6 inches)
89 mm (3.5 inches)
80 kg
4.54 litres
Red, blue, yellow, pink, white, black, grey, orange, green
Dual Telescopic Forks
Dual Shock
120/70-R12
205/30-R12
Single disc with two-piston calipers
Expanding brake (drum brake)

Image: https://www.bobcatsmotorsports.com/ICE_BEAR_Maddog_50cc_Street_Bike_PMZ50_19_p/pmz50-19.htm

Ice Bear Hawk 150 Trike (2016)

Technical Specifications
2016 Ice Bear Hawk 150 Trike
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Air cooled, single cylinder, four stroke
57.4 x 57.9 mm (2.3 x 2.3 inches)
149.6cc
4 valves per cylinder
10.3:1
8.18 HP (6.0 kW) @ 7500 rpm
9.30 Nm (0.9 kgf-m or 6.9 ft.lbs) @ 6000 rpm
Carburettor
Automatic
Chain

CDI
Electric & kick starter


Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel

2169 mm (85.4 inches)
1019 mm (40.1 inches)
1219 mm (48.0 inches)
1570 mm (61.8 inches)
859 mm (33.8 inches)
140 mm (5.5 inches)
200 kg
6.43 litres
Black, white, red/black, blue/black
Telescopic fork
Dual Shock
130/60-R13
205/50-R10
Single disc with two-piston calipers
Single disc with two-piston calipers

Image: http://www.bobcatsmotorsports.com/Ice_Bear_HAWK_150cc_Motor_Trike_PST150_18_p/trike%20pst150-18.htm

Ice Bear Ace 50 Trike (2016)

Technical Specifications
2016 Ice Bear Ace 50 Trike
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Air cooled, single cylinder, four stroke
38.4 x 41.4 mm (1.5 x 1.6 inches)
49.5cc
4 valves per cylinder
10.5:1
1.88 HP (1.4 kW) @ 5500 rpm
2.00 Nm (0.2 kgf-m or 1.5 ft.lbs) @ 4500 rpm
Carburettor

Chain

CDI
Electric & kick starter

Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel

1948 mm (76.7 inches)
1008 mm (39.7 inches)
1120 mm (44.1 inches)
1499 mm (59.0 inches)
790 mm (31.1 inches)
140 mm (5.5 inches)
119.8 kg
4.54 litres
Black/silver, red/silver, blue/silver, green/white, black, white
Telescopic fork
Dual Shock
120/70-R12
205/50-R10
Single disc with two-piston calipers
Single disc with two-piston calipers

Image: https://www.pinterest.com/pin/303852306081762831/

Ice Bear Elf 50 Trike (2016)

Technical Specifications
2016 Ice Bear Elf 50 Trike
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Air cooled, single cylinder, four stroke
38.4 x 41.4 mm (1.5 x 1.6 inches)
49.5cc
4 valves per cylinder
10.5:1
1.88 HP (1.4 kW) @ 5500 rpm
2.00 Nm (0.2 kgf-m or 1.5 ft.lbs) @ 4500 rpm
Carburettor

Chain

CDI
Electric & kick starter


Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel

2060 mm (81.1 inches)
864 mm (34.0 inches)
1110 mm (43.7 inches)
1539 mm (60.6 inches)
770 mm (30.3 inches)
140 mm (5.5 inches)
119.8 kg
4.54 litres
Black/white, blue/white, white
Telescopic fork
Dual Shock
120/70-R12
135/65-R12
Single disc with two-piston calipers
Single disc with two-piston calipers

Image: http://www.icebearatv.com/50CC-Trike16

Ice Bear Cyclone 150 Trike (2016)

Technical Specifications
2016 Ice Bear Cyclone 150 Trike
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Air cooled, single cylinder, four stroke
57.4 x 57.9 mm (2.3 x 2.3 inches)
149.6cc
4 valves per cylinder
10.3:1
8.18 HP (6.0 kW) @ 7500 rpm
9.30 Nm (0.9 kgf-m or 6.9 ft.lbs) @ 6000 rpm
Carburettor
Automatic
Chain

CDI
Electric & kick starter


Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel

2530 mm (99.6 inches)
1069 mm (42.1 inches)
1100 mm (43.3 inches)
1948 mm (76.7 inches)
699 mm (27.5 inches)
89 mm (3.5 inches)
160.1 kg
12.87 litres
Black, white, red, blue, silver
Telescopic fork
Dual Shock
130/60-R13
205/50-R10
Single disc with two-piston calipers
Single disc with two-piston calipers

Image: https://www.powerrideoutlet.com/ice-bear-150cc-cyclone-trike-scooter.html

Ice Bear 150-19N Trike (2016)

Technical Specifications
2016 Ice Bear 150-19N Trike
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Air cooled, single cylinder, four stroke
57.4 x 57.9 mm (2.3 x 2.3 inches)
149.6cc
4 valves per cylinder
10.3:1
8.18 HP (6.0 kW) @ 7500 rpm
9.30 Nm (0.9 kgf-m or 6.9 ft.lbs) @ 6000 rpm
Carburettor

Chain

CDI
Electric starter


Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel

2278 mm (89.7 inches)
968 mm (38.1 inches)
879 mm (34.6 inches)
1750 mm (68.9 inches)
559 mm (22.0 inches)
70 mm (2.8 inches)
161 kg
6.81 litres

Telescopic fork
Dual Shock
120/70-R12
270/30-R14
Single disc with two-piston calipers
Single disc with two-piston calipers

Image: https://www.bobcatsmotorsports.com/Ice_Bear_MADDOG_150cc_Motor_Trike_PST150_19N_p/pst150-19n.htm

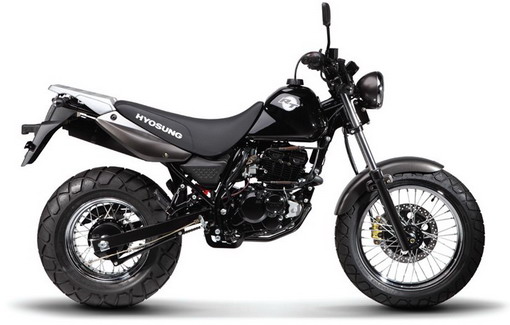

Hyosung RT125D (2016)

Technical Specifications
2016 Hyosung RT125D
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Oil/air cooled, single cylinder, four stroke, Double Overhead Cams
57.0 x 48.8 mm (2.2 x 1.9 inches)
124.5cc
4 valves per cylinder
11.3:1


Carburettor
5-speed
Chain
Wet, Multiplate
Electronic
Electric starter
Wet sump

Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel

2085 mm (82.1 inches)
850 mm (33.5 inches)
1125 mm (44.3 inches)
1350 mm (53.1 inches)
790 mm (31.1 inches)

135 kg
9.10 litres
Black, white/red, red/white
Telescopic fork
Monoshock
130/80-R18
180/80-R14
Single disc with two-piston calipers
Expanding brake (drum brake)

Image: https://www.autoevolution.com/moto/hyosung-hyosung-rt125d-2016.html#aeng_hyosung-hyosung-rt125d-2016-125

Hyosung GV650P (2016)

Technical Specifications
2016 Hyosung GV650P
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Liquid cooled, 90° V-twin cylinder, four stroke, Double Overhead Cams
81.5 x 62.0 mm (3.2 x 2.4 inches)
647cc
4 valves per cylinder
11.6:1
79.00 HP (57.7 kW) @ 9000 rpm
66.99 Nm (6.8 kgf-m or 49.4 ft.lbs) @ 7250 rpm
Injection
5-speed
Belt
Wet, Multiplate

Electric starter
Wet sump

Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)



2431 mm (95.7 inches)
840 mm (33.1 inches)

1700 mm (66.9 inches)
690 mm (27.2 inches)
160 mm (6.3 inches)
232 kg
16.0 litres
Black, red, silver
Upside down telescopic fork
Swing arm with Hydraulic Double shock absorber
120/70-ZR18
180/55-ZR17
Dual 300 mm semi floating disc with two-piston calipers
Single 270 mm disc with two-piston calipers

Image: http://www.motorcyclecruiser.com/2016-hyosung-gv650-aquila-pro

Hyosung GV125C (2016)

Technical Specifications
2016 Hyosung GV125C
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Oil/air cooled, v-twin cylinder, four stroke, Double Overhead Cams
97.0 x 67.5 mm
124.5cc
4 valves per cylinder
10.3:1


Injection
6-speed
Chain


Electric starter
Wet sump

Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)


25.0°
2282 mm (89.8 inches)
875 mm (34.4 inches)
1096 mm (43.1 inches)
1515 mm (59.6 inches)
710 mm (28.0 inches)
150 mm (5.9 inches)
175 kg
14.0 litres
Black, red, blue
Telescopic fork
Double shock absorber
110/90-R16
150/80-15
Single disc with two-piston calipers
Expanding brake (drum brake)

Image: http://www.superbikefactory.co.uk/used-hyosung-gv125-macclesfield-cheshire-689810

Hyosung GT650RC (2016)

Technical Specifications
2016 Hyosung GT650RC
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Liquid cooled, 90° V-twin cylinder, four stroke, Double Overhead Cams
81.5 x 62.0 mm (3.2 x 2.4 inches)
647cc
4 valves per cylinder
11.5:1
79.00 HP (57.7 kW) @ 9250 rpm
66.88 Nm (6.8 kgf-m or 49.3 ft.lbs) @ 7250 rpm
Injection
6-speed
Chain
Wet multiplate
Electronic
Electric starter
Wet sump

Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)


25.0°
2090 mm (82.3 inches)
700 mm (27.6 inches)
1135 mm (44.7 inches)
1435 mm (56.5 inches)
831 mm (32.7 inches)
165 mm (6.5 inches)
215 kg
17.0 litres
Red, black, red/white, white/black
Upside-down telescopic fork
Hydraulic Mono shock absorber
120/60-ZR17
160/60-ZR17
Dual 300 mm semi floating disc with four-piston calipers
Single 230 mm disc with two-piston calipers

Image: http://xxicenturymoto.com/2016/01/10/2009-hyosung-gt650/

Hyosung GT650P (2016)

Technical Specifications
2016 Hyosung GT650P
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Liquid cooled, 90° V-twin cylinder, four stroke, Double Overhead Cams
81.5 x 62.0 mm (3.2 x 2.4 inches)
647cc
4 valves per cylinder
11.5:1
79.00 HP (57.7 kW) @ 9250 rpm
66.88 Nm (6.8 kgf-m or 49.3 ft.lbs) @ 7250 rpm
Injection
6-speed
Chain
Wet, Multiplate
Electronic
Electric starter
Wet sump

Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)


25.0°
2090 mm (82.3 inches)
785 mm (30.9 inches)
1150 mm (45.3 inches)
1435 mm (56.5 inches)
830 mm (32.7 inches)
165 mm (6.5 inches)
208 kg
17.0 litres
White, red, black
Upside-down telescopic fork
Hydraulic Mono shock absorber
120/60-ZR17
160/60-ZR17
Dual 300 mm semi floating disc with four-piston calipers
Single 230 mm disc with two-piston calipers

Image: http://www.cycleworld.com/2016-hyosung-gt650

Hyosung GT250RC (2016)

Technical Specifications
2016 Hyosung GT250RC
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Oil/air cooled, 75° V-twin cylinder, four stroke, Double Overhead Cams
57.0 x 48.8 mm (2.2 x 1.9 inches)
249cc
4 valves per cylinder
10.2:1
27.00 HP (19.7 kW) @ 10500 rpm
22.69 Nm (2.3 kgf-m or 16.7 ft.lbs) @ 8000 rpm
Injection
5-speed
Chain
Wet multiplate

Electric starter
Wet sump

Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel

2090 mm (82.3 inches)
700 mm (27.6 inches)
1130 mm (44.5 inches)
1435 mm (56.5 inches)
830 mm (32.7 inches)
155 mm (6.1 inches)
188.0 kg (414.5 pounds)
17.0 litres
Red, black, white/red, red/white
Upsidedown telescopic
Hydraulic Mono shock absorber
110/70-R17
150/70-R17
Dual 300 mm disc with two-piston calipers
Single 230 mm disc with two-piston calipers

Image: https://www.motorcula

Hyosung GT250P (2016)

Technical Specifications
2016 Hyosung GT250P
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Oil/air cooled, 75° V-twin cylinder, four stroke, Double Overhead Cams
57.0 x 48.8 mm (2.2 x 1.9 inches)
249cc
4 valves per cylinder
10.2:1
27.00 HP (19.7 kW) @ 10500 rpm
22.69 Nm (2.3 kgf-m or 16.7 ft.lbs) @ 8000 rpm
Injection
5-speed
Chain
Wet, Multiplate

Electric starter
Wet sump

Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel

2090 mm (82.3 inches)
780 mm (30.7 inches)
1120 mm (44.1 inches)
1435 mm (56.5 inches)
830 mm (32.7 inches)
155 mm (6.1 inches)
170 kg
17.0 litres
Red, black, white
Upsidedown telescopic
Hydraulic Mono shock absorber
110/70-R17
150/70-R17
Dual 300 mm disc with two-piston calipers
Single 230 mm disc with two-piston calipers

Image: https://www.motorcular.com/tr/modelTanitim/hyosung/gt-250-naked/923

Hyosung GT125R (2016)

Technical Specifications
2016 Hyosung GT125R
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Oil/air cooled, v-twin cylinder, four stroke, Double Overhead Cams
44.0 x 41.0 mm (1.7 x 1.6 inches)
124.5cc
4 valves per cylinder
10.2:1


Injection
5-speed
Chain
Wet multiplate
CDI
Electric starter
Wet sump

Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel

2,090 mm (82.3 inches)
700 mm (27.6 inches)
1,130 mm (44.5 inches)
1,435 mm (56.5 inches)
830 mm (32.7 inches)
155 mm (6.1 inches)
120 kg
17.0 litres
Black, white/red, red/white
Telescopic fork
Hydraulic Mono shock absorber
110/70-R17
150/70-R17
Single 300 mm disc with two-piston calipers
Single 230 mm disc with two-piston calipers

Image: http://www.moto.it/listino/hyosung/gt-125-r/gt-125-r-2017/svHL2z

LG G6

Specifications
LG G6
Network2G
3G
4G
GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
LTE
SizeDimensions
Weight
Display
148.9 x 71.9 x 7.9 mm (5.86 x 2.83 x 0.31 in)
163 gram
IPS LCD capacitive touchscreen, 16M colors
1440 x 2880 pixels, 5.7 inches, 18:9 ratio (~564 ppi density)
MemoryPhonebook
Call records
Internal
Card slot
Yes
Yes
32/64/128 GB, 4 GB RAM
microSD, up to 400 GB
DataGPRS
EDGE
3G
WLAN
Bluetooth
Infrared port
USB
Yes
Yes
HSPA 42.2/5.76 Mbps, LTE-A (3CA) Cat12 600/150 Mbps
Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, DLNA, hotspot
v4.2 with A2DP, LE, aptX HD

3.1, Type-C 1.0 reversible connector, USB On-The-Go
FeaturesOS
CPU
Messaging
Alert
Browser
Radio
GPS
Games
Camera
Video
Colors
Java
Android 7.0 (Nougat), planned upgrade to Android 8.1 (Oreo)
Quad-core (2x2.35 GHz Kryo & 2x1.6 GHz Kryo)
SMS, MMS, Email, Push Email, IM
Vibration; MP3, WAV ringtones
HTML5
FM radio
A-GPS, GLONASS, BDS
Yes
Dual: 13 MP + 13 MP, phase detection autofocus, dual-LED flash
2160p@30fps, 1080p@30/60fps, HDR, stereo sound rec.
Astro Black, Ice Platinum, Terra Gold, Marine Blue, Mystic White

- Loudspeaker
- Front/back glass (Gorilla Glass 3/5), aluminum frame
- Multitouch
- 3.5mm jack
- IP68 certified - dust/water proof (up to 1.5m for 30 mins)
- MIL-STD-810G compliant
- Corning Gorilla Glass 3 (protection)
- Dolby Vision/HDR10 compliant
- Always-on display
- LG UX 6.0 UI
- Geo-tagging, touch focus, face detection, HDR, panorama
- 32-bit/192kHz audio
- Active noise cancellation with dedicated mic
- WPC&PMA wireless charging (US version only)
- Fast battery charging: 50% in 30 min (Quick Charge 3.0)
- MP4/DviX/XviD/H.265 player
- MP3/WAV/FLAC/eAAC+ player
- Photo/video editor
- Document editor
- Calendar
- Alarm
Battery
Stand-by
Talk time
Non-removable Li-Po 3300 mAh battery
Up to
Up to

Hyosung GT125 Comet (2016)

Technical Specifications
2016 Hyosung GT125 Comet
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Oil/air cooled, v-twin cylinder, four stroke, Double Overhead Cams
44.0 x 41.0 mm (1.7 x 1.6 inches)
125cc
4 valves per cylinder
11.3:1
14.20 HP (10.4 kW) @ 10500 rpm
9.70 Nm (1.0 kgf-m or 7.2 ft.lbs) @ 10000 rpm
Carburettor. 2 x 26mm BDS26 Mikuni
5-speed
Chain
Wet multiplate
CDI
Electric starter
Wet sump

Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Double cradle steel

2080 mm (81.9 inches)
760 mm (29.9 inches)
1120 mm (44.1 inches)
1445 mm (56.9 inches)
795 mm (31.3 inches)
180 mm (7.1 inches)
150 kg
17.0 litres
White, red, black
Conventional fork
Swing arm with Hyeraulic Double shock absorber
110/70-R17
150/70-R17
Single 300 mm disc with two-piston calipers
Single 230 mm disc with two-piston calipers

Image: http://www.carpicker.net/bikes/hyosung/GT%20125%20Naked

Hyosung GD250R (2016)

Technical Specifications
2016 Hyosung GD250R
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Oil & air cooled, 75° V-twin cylinder, four stroke, DOHC
73.0 x 59.0 mm (2.9 x 2.3 inches)
249cc
4 valves per cylinder
12.0:1


Injection
6-speed
Chain
Wet, Multiplate
Electronic
Electric starter
Wet sump

Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)



1937 mm (76.3 inches)
800 mm (31.5 inches)
1055 mm (41.5 inches)
1346 mm (53.0 inches)
810 mm (31.9 inches)

155 kg
17.0 litres
Black/red, white/red/black, silver/red/black
Upside down fork
Swing arm with single shock absorber
110/70-R17
150/70-R17
Single disc with two-piston calipers
Single disc with two-piston calipers

Image: http://blog.vehiclejar.com/hyosung-gd-250-r-2015/

Hyosung GD250N (2016)

Technical Specifications
2016 Hyosung GD250N
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust system
Spark plug
Alternator
Gear ratios

Oil & air cooled, single cylinder, four stroke, Double Overhead Cams
73.0 x 59.0 mm (2.9 x 2.3 inches)
249cc
4 valves per cylinder
12.0:1
113 hp (84.3 kW) @ 9250 rpm
96 Nm (70.8 ft. lbs) @ 7250 rpm
Injection
6-speed
Chain
Wet, Multiplate
Electronic
Electric starter
Wet sump

Dimensions
Frame type
Rake/trail
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)



1937 mm (76.3 inches)
800 mm (31.5 inches)
1055 mm (41.5 inches)
1346 mm (53.0 inches)
810 mm (31.9 inches)

155 kg
17.0 litres
Black/red, white/red/black, silver/red/black
Upside down fork
Swing arm with single shock absorber
110/70-R17
150/70-R17
Single disc with two-piston calipers
Single disc with two-piston calipers

Image: https://www.autoevolution.com/moto/hyosung-hyosung-gd250n-2016.html#aeng_hyosung-hyosung-gd250n-2016-250

Archive
