Specifications

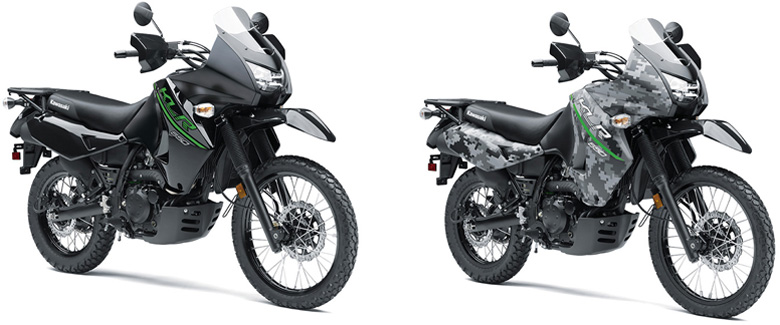

2017 Kawasaki KLR 650
Weight incl. oil, gas, etc: 196.0 kg (432.0 pounds)
Seat height: 889 mm (35.0 inches) If adjustable, lowest setting.
Overall height: 1349 mm (53.1 inches)
Overall length: 2296 mm (90.4 inches)
Overall width: 960 mm (37.8 inches)
Ground clearance: 211 mm (8.3 inches)
Wheelbase: 1481 mm (58.3 inches)
Fuel capacity: 23.09 litres (6.10 US gallons)
Frame type: Semi-double cradle, high-tensile steel
Rake (fork angle): 28.0°
Trail: 112 mm (4.4 inches)
Front suspension: 41mm telescopic fork
Front wheel travel: 201 mm (7.9 inches)
Rear suspension: Uni-Trak single-shock system with 5-way preload and stepless rebound damping
Rear wheel travel: 185 mm (7.3 inches)
Front tire: 90/90-21
Rear tire: 130/80-17
Front brakes: Single disc. Two-piston calipers.
Diameter: 280 mm (11.0 inches)
Rear brakes: Single disc. Single piston
Displacement: 651.0 ccm (39.72 cubic inches)
Engine type: Single cylinder, four-stroke
Compression: 9.8:1
Bore x stroke: 100.0 x 83.0 mm (3.9 x 3.3 inches)
Fuel system: Carburettor. Keihin CVK40
Fuel control: Double Overhead Cams/Twin Cam (DOHC)
Ignition: Electric CDI
Cooling system: Liquid
Gearbox: 5-speed
Transmission type,
final drive: Chain
