Specifications

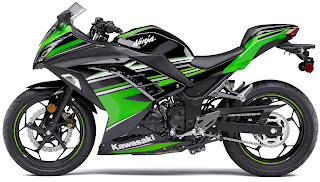

2017 Kawasaki Ninja 300 KRT Edition
Weight incl. oil, gas, etc: 172.0 kg (379.2 pounds)
Seat height: 785 mm (30.9 inches) If adjustable, lowest setting.
Overall height: 1110 mm (43.7 inches)
Overall length: 2014 mm (79.3 inches)
Overall width: 714 mm (28.1 inches)
Wheelbase: 1405 mm (55.3 inches)
Fuel capacity: 17.03 litres (4.50 US gallons)
Frame type: Tubular diamond, steel
Rake (fork angle): 27.0°
Trail: 94 mm (3.7 inches)
Front suspension: 37mm hydraulic telescopic fork
Front wheel travel: 119 mm (4.7 inches)
Rear suspension: Uni-Trak with 5-way adjustable preload
Rear wheel travel: 132 mm (5.2 inches)
Front tire: 110/70-17
Rear tire: 140/70-17
Front brakes: Single disc. Hydraulic. Two-piston calipers.
Diameter: 290 mm (11.4 inches)
Rear brakes: Single disc. Hydraulic. Two-piston calipers.
Diameter: 220 mm (8.7 inches)
Displacement: 296.0 ccm (18.06 cubic inches)
Engine type: Twin, four-stroke
Power: 39.0 HP (28.5 kW) @ 11000 RPM
Torque: 27.0 Nm (2.8 kgf-m or 19.9 ft.lbs) @ 10000 RPM
Compression: 10.6:1
Bore x stroke: 62.0 x 49.0 mm (2.4 x 1.9 inches)
Valves per cylinder: 4
Fuel system: Injection. DFI with dual 32mm throttle bodies
Fuel control: Double Overhead Cams/Twin Cam (DOHC)
Ignition: TCBI with digital advance
Cooling system: Liquid
Gearbox: 6-speed
Transmission type,
final drive: Chain
