Specifications

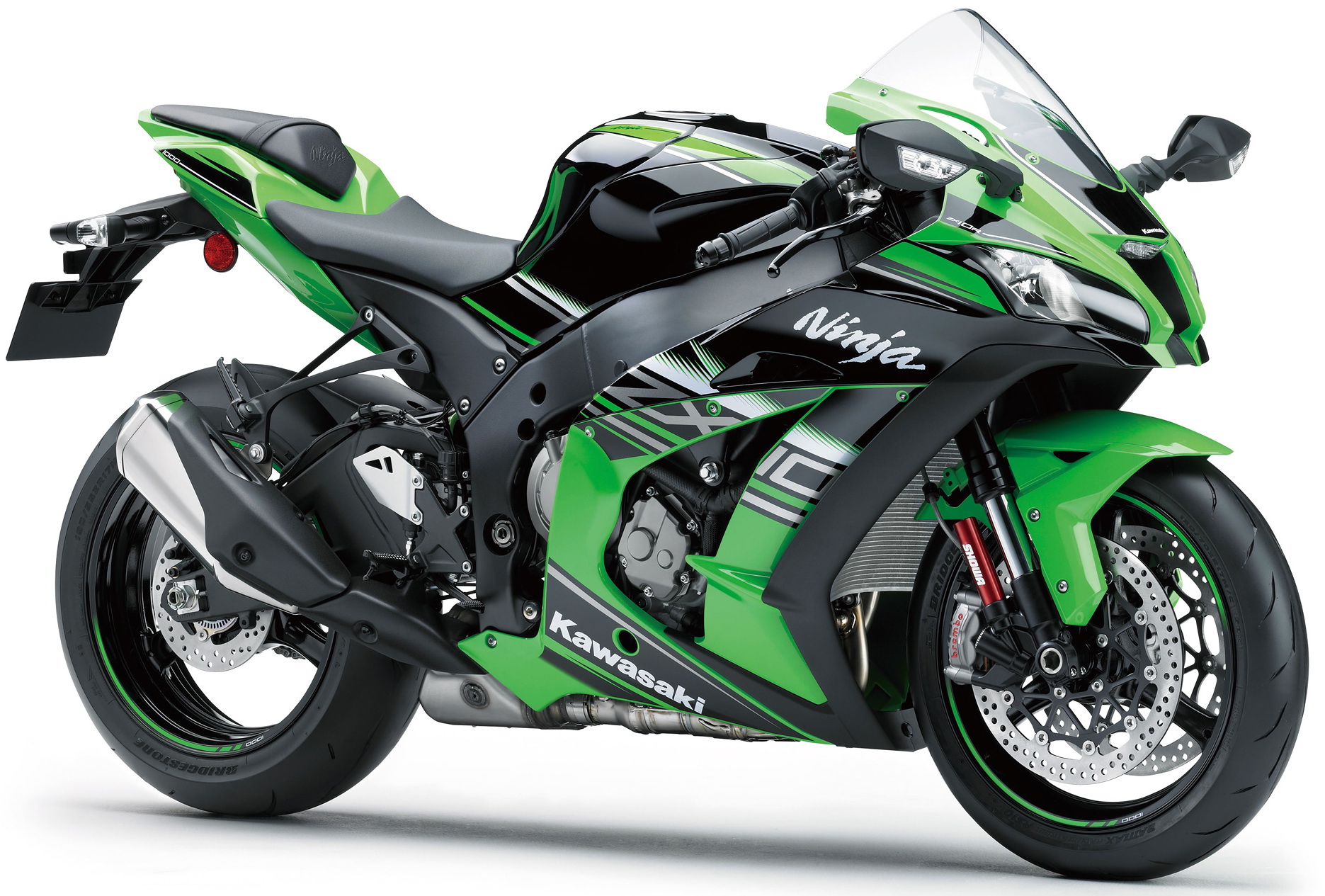

2017 Kawasaki Ninja ZX-10R KRT Replica
Weight incl. oil, gas, etc: 206.0 kg (454.2 pounds)
Seat height: 835 mm (32.9 inches) If adjustable, lowest setting.
Overall height: 1145 mm (45.1 inches)
Overall length: 2090 mm (82.3 inches)
Overall width: 740 mm (29.1 inches)
Ground clearance: 145 mm (5.7 inches)
Wheelbase: 1425 mm (56.1 inches)
Fuel capacity: 17.03 litres (4.50 US gallons)
Rake (fork angle): 25.0°
Trail: 107 mm (4.2 inches)
Front suspension: 43 mm inverted fork with rebound and compression damping, spring preload adjustability and top-out springs
Front wheel travel: 119 mm (4.7 inches)
Rear suspension: Horizontal Back-link with gas-charged shock and top-out spring. Compression damping
Rear wheel travel: 140 mm (5.5 inches)
Front tire: 120/70-ZR17
Rear tire: 190/55-ZR17
Front brakes: Double disc. Floating discs. Optional ABS.
Diameter: 310 mm (12.2 inches)
Rear brakes: Single disc. Optional ABS.
Diameter: 220 mm (8.7 inches)
Displacement: 998.0 ccm (60.90 cubic inches)
Engine type: In-line four, four-stroke
Power: 200.0 HP (146.0 kW) @ 13000 RPM
Torque: 113.5 Nm (11.6 kgf-m or 83.7 ft.lbs) @ 11600 RPM
Compression: 13.0:1
Bore x stroke: 76.0 x 55.0 mm (3.0 x 2.2 inches)
Valves per cylinder: 4
Fuel system: Injection
Fuel control: Double Overhead Cams/Twin Cam (DOHC)
Ignition: TCBI with digital advance and Sport-Kawasaki Traction Control (S-KTRC)
Lubrication system: Forced lubrication, wet sump with oil cooler
Cooling system: Liquid
Gearbox: 6-speed
Transmission type,
final drive: Chain
Clutch: Wet multi-disc, manual
Driveline: Sealed chain
