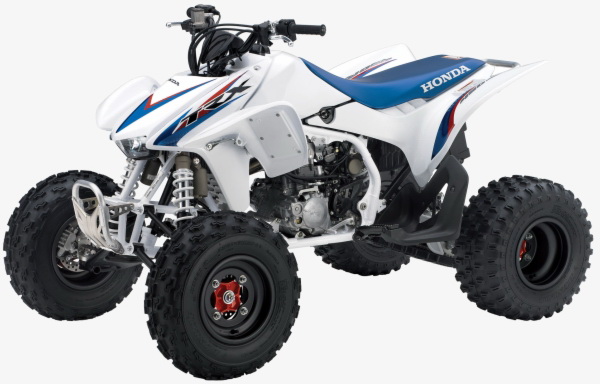

2017 Honda TRX450R
Weight incl. oil, gas, etc: 176.0 kg (388.0 pounds)
Seat height: 833 mm (32.8 inches) If adjustable, lowest setting.
Overall height: 1100 mm (43.3 inches)
Overall length: 1862 mm (73.3 inches)
Overall width: 1176 mm (46.3 inches)
Ground clearance: 112 mm (4.4 inches)
Wheelbase: 1275 mm (50.2 inches)
Fuel capacity: 10.22 litres (2.70 gallons)
Reserve fuel capacity: 3.03 litres (0.80 gallons)
Aspect Ratio:90
Front suspension: Independent double-wishbone with Showa shocks, featuring adjustable spring-preload, rebound and compression-damping
Front wheel travel: 213 mm (8.4 inches)
Rear suspension: Pro-Link with single Showa shock featuring adjustable spring-preload, rebound- and compression damping
Rear wheel travel: 236 mm (9.3 inches)
Front tire: 21/7-10
Rear tire: 20/10-9
Front brakes: Double disc. Hydraulic. Two-piston calipers.
Diameter: 174 mm (6.9 inches)
Rear brakes: Single disc. Hydraulic. Single-piston caliper.
Diameter: 190 mm (7.5 inches)
Displacement: 450.0 ccm (27.46 cubic inches)
Engine type: Single cylinder, four-stroke
Engine details: 36mm intake valve (titanium), 30mm exhaust (steel)
Compression: 12.0:1
Bore x stroke: 96.0 x 62.0 mm (3.8 x 2.4 inches)
Valves per cylinder: 4
Fuel system: Carburettor. Keihin 40mm flat-slide carburetor with Throttle Position Sensor (TPS)
Fuel control: Single Overhead Cams (SOHC)
Ignition: CD with electronic advance
Lubrication system: Twin sump
Cooling system: Liquid
Gearbox: 5-speed
Transmission type,
final drive: Chain
Driveline: O-ring-sealed chain
