Honda Activa i (2017)

Technical Specifications
2017 Honda Activa i

Engine Engine type Bore x Stroke Displacement Valves Compression ratio Max Power Max Torque Fuel system Transmission Final drive Clutch Ignition type Starting system Lubrication Exhaust system Spark plug Alternator Gear ratios	Air cooled, single cylinder, four stroke 50.0 x 55.6 mm (2.0 x 2.2 inches) 109.1 ccm (6.66 cubic inches) 2 valves per cylinder 9.5:1 8.0 HP (5.8 kW) @ 7500 rpm 8.7 Nm (0.9 kgf-m or 6.4 ft.lbs) @ 5500 rpm Carburettor Automatic Belt Electric & kick starter
Dimensions Frame type Rake/trail Overall length Overall width Overall height Wheelbase Seat height Ground clearance Weight Fuel capacity Color Suspension (front) Suspension (rear) Tyre (front) Tyre (rear) Brake (front) Brake (rear)	Underbone 1795 mm (70.7 inches) 705 mm (27.8 inches) 1260 mm (49.6 inches) 765 mm (30.1 inches) 165 mm (6.5 inches) 103.0 kg (227.1 pounds) 5.30 litres (1.40 gallons) Yellow, blue, white, black Telescopic fork Spring Loaded Hydraulic Type 90/90-R12 90/100-R10 Expanding brake (drum brake) Expanding brake (drum brake)

Image: https://www.carblogindia.com/2017-honda-activa-i/

Read More

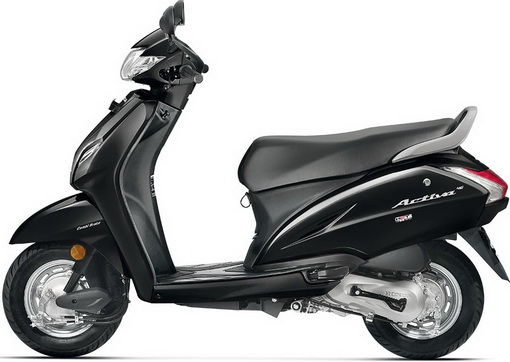

Honda Activa 4G (2017)

Technical Specifications
2017 Honda Activa 4G

Engine Engine type Bore x Stroke Displacement Valves Compression ratio Max Power Max Torque Fuel system Transmission Final drive Clutch Ignition type Starting system Lubrication Exhaust system Spark plug Alternator Gear ratios	Air cooled, single cylinder, four stroke 50.0 x 55.6 mm (2.0 x 2.2 inches) 109.1 ccm (6.66 cubic inches) 2 valves per cylinder 9.5:1 8.0 HP (5.8 kW) @ 7500 rpm 8.7 Nm (0.9 kgf-m or 6.4 ft.lbs) @ 5500 rpm Carburettor Automatic Belt Electric & kick starter
Dimensions Frame type Rake/trail Overall length Overall width Overall height Wheelbase Seat height Ground clearance Weight Fuel capacity Color Suspension (front) Suspension (rear) Tyre (front) Tyre (rear) Brake (front) Brake (rear)	Underbone 1761 mm (69.3 inches) 710 mm (28.0 inches) 1149 mm (45.2 inches) 103.0 kg (227.1 pounds) 5.30 litres (1.40 gallons) Red, blue, white, black, grey, silver Spring loaded hydraulic Spring loaded hydraulic 90/100-R10 90/100-R10 Expanding brake (drum brake) Expanding brake (drum brake)

Image: https://www.carblogindia.com/2017-honda-activa-4g/

Read More

Herald Cafe Racer 250 (2017)

Technical Specifications
2017 Herald Cafe Racer 250

Engine Engine type Bore x Stroke Displacement Valves Compression ratio Max Power Max Torque Fuel system Transmission Final drive Clutch Ignition type Starting system Lubrication Exhaust system Spark plug Alternator Gear ratios	Air cooled, single cylinder, four stroke, DOHC 249.0 ccm (15.19 cubic inches) Carburettor 5-speed Chain Electric starter
Dimensions Frame type Rake/trail Overall length Overall width Overall height Wheelbase Seat height Ground clearance Weight Fuel capacity Color Suspension (front) Suspension (rear) Tyre (front) Tyre (rear) Brake (front) Brake (rear)	Steel 780 mm (30.7 inches) 130.0 kg (286.6 pounds) 12.00 litres (3.17 gallons) Black/white, Light blue/white Telescopic fork Dual shocks 110/80-R17 130/70-R17 Single disc Single disc

Image: https://bike.net/en/Herald/32508-Cafe_Racer_250_2017

Read More

Harley-Davidson Street 750 (2017)

Technical Specifications
2017 Harley-Davidson Street 750

Engine Engine type Bore x Stroke Displacement Valves Compression ratio Max Power Max Torque Fuel system Transmission Final drive Clutch Ignition type Starting system Lubrication Exhaust system Spark plug Alternator Gear ratios	Liquid cooled, Revolution X™ V-Twin cylinder, four stroke, SOHC 69.1 x 66.0 mm (2.7 x 2.6 inches) 749.0 ccm (45.70 cubic inches) 11.0:1 58.0 HP (42.3 kW) @ 8000 rpm 60.3 Nm (6.2 kgf-m or 44.5 ft.lbs) @ 4000 rpm Mikuni Single Port Fuel Injection, 38 mm bore 6-speed Belt Multi-plate with diaphragm spring in oil bath Electric starter Black Two- into-one exhaust
Dimensions Frame type Rake/trail Overall length Overall width Overall height Wheelbase Seat height Ground clearance Dry weight Fuel capacity Color Suspension (front) Suspension (rear) Tyre (front) Tyre (rear) Brake (front) Brake (rear)	32° 2225 mm (87.6 inches) 1534 mm (60.4 inches) 653 mm (25.7 inches) 145 mm (5.7 inches) 223.0 kg (491.6 pounds) 13.10 litres (3.46 gallons) Velocity Red Sunglo, Vivid Black, Black Denim, Superior Blue Telescopic fork Twin shocks 100/80-R17 140/75-R15  Single floating disc with two-piston calipers (optional ABS) Single floating disc with two-piston calipers (optional ABS)

Image: https://buds-harley.com/Showroom/2017/Harley-Davidson/Motorcycle/Street/Street-750

Read More

Shinko 005 Advance Tires

Specifications
Shinko 005 Advance Tires

Position: Front, Rear

Sidewall: Blackwall

Tire Size Description:

120/60ZR17 55W, 120/70VR21 52V, 120/70ZR17 58W, 130/70VR18 63V, 160/60ZR17 69W, 170/60ZR17 72W, 180/55ZR17 73W, 190/50ZR17 73W, 200/50ZR17 75W, 240/40VR18 79V

Model: 005 Advance

Style: 005 Advance

Style Name: 005 Advance

Tire Construction: Radial

Tubeless

Read More

Honda CB1100 DLX (2017)

Technical Specifications
2017 Honda CB1100 DLX

Engine Engine type Bore x Stroke Displacement Valves Compression ratio Max Power Max Torque Fuel system Transmission Final drive Clutch Ignition type Starting system Lubrication Intake system Spark plug Battery Gear ratios	Oil & air Cooled, in-line four cylinders, four-stroke, DOHC 73.5 x 67.2 mm (2.9 x 2.6 inches) 1140.0 ccm (69.56 cubic inches) 4 valves per cylinder 9.5:1 88.5 HP (64.6 kW) @ 7500 rpm 91.0 Nm (9.3 kgf-m or 67.1 ft.lbs) @ 5000 rpm PGM-FI with automatic enrichment circuit, 32mm throttle bodies 6-speed Chain Digital transistorized with electronic advance Electric starter 1st: 2nd: 3rd: 4th: 5th: 6th:
Dimensions Frame type Rake/trail Overall length Overall width Overall height Wheelbase Seat height Ground clearance Weight Fuel capacity Color Suspension (front) Suspension (rear) Tyre (front) Tyre (rear) Brake (front) Brake (rear)	Double steel cradle 27° 1491 mm (58.7 inches) 792 mm (31.2 inches) 130 mm (5.1 inches) 248.0 kg (546.7 pounds) 14.76 litres (3.90 gallons) Black 41mm fork with spring preload adjustability Dual shocks with spring preload adjustability rebound damping adjustability 110/80-R18 140/70-18 Double floating discs 296mm with four-piston calipers Single disc 256mm with single-piston caliper

Image: https://id.pinterest.com/pin/393009504975271473/

Read More

Harley-Davidson Sportster Superlow (2017)

Technical Specifications
2017 Harley-Davidson Sportster Superlow

Engine Engine type Bore x Stroke Displacement Valves Compression ratio Max Power Max Torque Fuel system Transmission Final drive Clutch Ignition type Starting system Lubrication Exhaust system Spark plug Alternator Gear ratios	Air cooled, V2 cylinder, four stroke 76.2 x 96.8 mm (3.0 x 3.8 inches) 883.3 ccm (53.90 cubic inches) 9.0:1 52.3 HP (38.2 kW) @ 5750 rpm 73.0 Nm (7.4 kgf-m or 53.8 ft.lbs) @ 4000 rpm Electronic Sequential Port Fuel Injection (ESPFI) 6-speed Belt Multi-plate with diaphragm spring in oil bath Electric starter Dry sump Chrome, staggered, shorty exhaust with dual mufflers
Dimensions Frame type Rake/trail Overall length Overall width Overall height Wheelbase Seat height Ground clearance Dry weight Fuel capacity Color Suspension (front) Suspension (rear) Tyre (front) Tyre (rear) Brake (front) Brake (rear)	30° 2215 mm (87.2 inches) 1501 mm (59.1 inches) 648 mm (25.5 inches) 100 mm (3.9 inches) 245.0 kg (540.1 pounds) 17.03 litres (4.50 gallons) Crushed ice pearl/frosted pearl, superior blue, hard candy mystic purple Telescopic fork Twin shocks 120/70-ZR18 150/60-ZR17 Single disc with two-piston calipers (optional ABS) Single disc with two-piston calipers (optional ABS)

Image: https://www.totalmotorcycle.com/motorcycles/2017/2017-Harley-Davidson-SuperLow

Read More
